Multirotor Drone Propulsion Motor 23850 With 55 Inch Propeller And High Efficiency ESC

Name: Multirotor Drone Propulsion Motor 23850 With 55 Inch Propeller And High Efficiency ESC
Brand: Furious Motor
Price: 2735 USD

China Multirotor Drone Propulsion Motor 23850 With 55 Inch Propeller And High Efficiency ESC wholesale

Brand Name : Furious Motor

Model Number : 23850

Certification : CE

Place of Origin : China

MOQ : 1

Price : $2735

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 3000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Carton witn protection (EPE)

Model : 23850

Dimension : 238mm * 50mm

KV : 35

Max. Thrust : 98KG

Max. Torque : 80N.m

Max. RPM : 2420

Suggested ESC : 24S 300A

Suggested Prop : 55 tri-blade propeller

Max. Current : 280A

Max. Voltage : 90V

Max. Power : 20KW

Li - Po : 14S - 24S

Hall Sensor : Optional

Weight : 6.3KG

Application : Drone, paramotor

Contact Now

Intoroduction

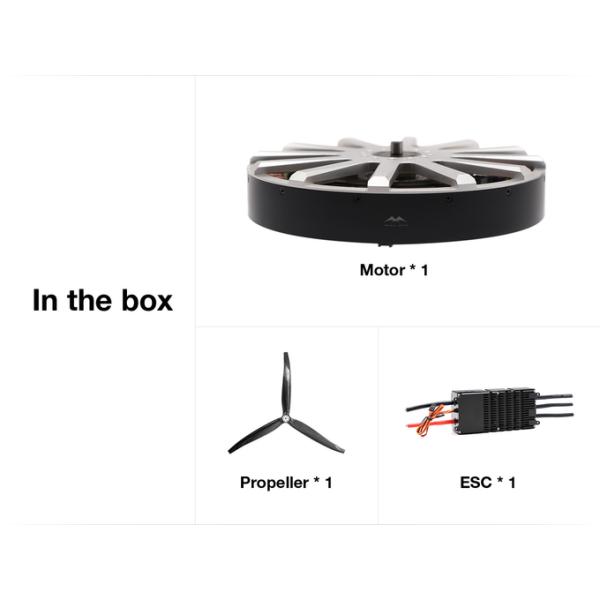

Presenting the 23850 Propulsion System, a top-tier solution crafted for exceptional aerial performance. Central to this system is the 23850 BLDC motor, seamlessly integrated with a 24S 300A ESC and a 55-inch propeller, unleashing an impressive maximum thrust of 98kg.

Designed to tackle the needs of diverse applications such as multirotor drones (quadcopters, hexacopters, octocopters), paramotors, and paragliders, this system delivers whether you require robust lifting power, prolonged flight duration, or consistent, dependable operation, making the 23850 Propulsion System your ideal partner for soaring to new heights.

Tech Specs

System

Max. Thrsut	98 kg / rotor
Takeoff Weight	39 kg - 49 kg / rotor
Suggested ESC	24 S 300 A
Suggested Propeller	55 inch 3-blade propeller
Suggested Battery	12 S - 24 S
Working Temperature	-20 °C ~ 50 °C
Total Weight	6.5 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Motor

Model	238-50
KV	35
Max. Thrsut	98 kg
Max. Torque	80 N·m
Max. RPM	2420
Dimension	238 mm * 50 mm
Weight	4.5 kg

ESC

Model	24 S 300 A
Suggested Battery	12 S ~ 24 S (Li-Po)
PMW Signal	3.3 V / 5 V
Pulse Width	900 us ~ 2000 us
Signal Frequency	50 Hz ~ 400 Hz
Max. Input Voltage	DC 50 V ~ 100 V
Max. Input Current	240 A
Weight	595 g
Dimension	140.5 mm * 66.6 mm * 47.1 mm

Propeller

Model	55 inch 3-blade
Diameter	55 inch
Material	Carbon fiber
Weight	1.2 kg

Details

Multirotor Drone Propulsion Motor 23850 With 55 Inch Propeller And High Efficiency ESC

Powerful Multirotor Drone Propulsion Motor 23850 With 55-Inch Propeller And High-Efficiency ESC
